We can bend metal up to 36 feet.

 (No one bends it like Beckam? Or, should we say, like CSM? The massive force of our multiple brake presses can shape your custom metal piece. What large project do you need done that we can help fabricate?)

__________________________________________________________

HOW DO WE BEND METAL? Usually with our press brakes (machine presses that bend sheet metal into shape.) Bending forces can commonly exceed 4,000 kilonewtons (900,000 lbf.) Press brake machines normally use a wedge shaped upper die that force the metal down into the V shaped lower die to bend metal to conform with the tooling. We also have several angle rollers for bending tubes, pipes, channels, square and round stock, and extruded aluminum.

__________________________________________________________

OUR BRAKE PRESSES

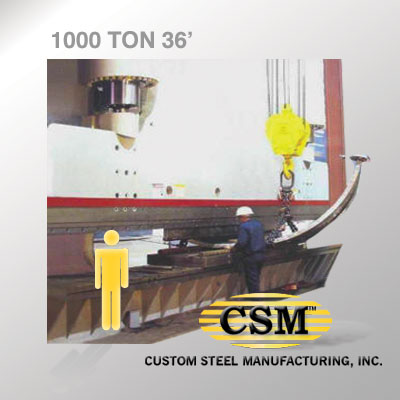

1000 TON 36' PRESS BRAKE
1,000 ton 36’
36’’ stroke
40’’ throat depth
54’’ open height
25’6’’ between uprights

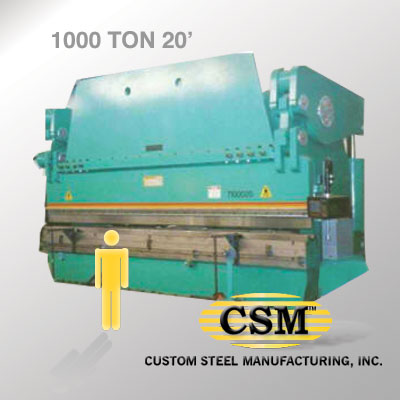

1000 TON 20' PRESS BRAKE 1,000 ton 20’
14’’ stroke
15’’ throat depth
23’’ open height
17’3’’ between uprights

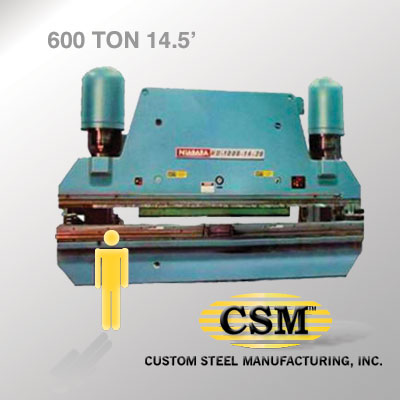

600 TON 14.5' PRESS BRAKE 600 ton 14.5’
12’’ stroke
16’’ throat depth
20’’ open height
12’6’’ between uprights

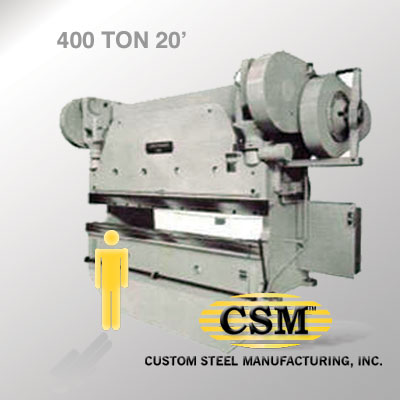

400 TON 20' PRESS BRAKE 400 ton 20’
4’’ stroke
10’’ throat depth
12.5’’ open height
14’6’’ between uprights



__________________________________________________________

Do you need a custom prototype? Short run? Large fabrication project? Feel free to contact us at 816-331-7100 or to email us. We look forward to working with you on your next project!
